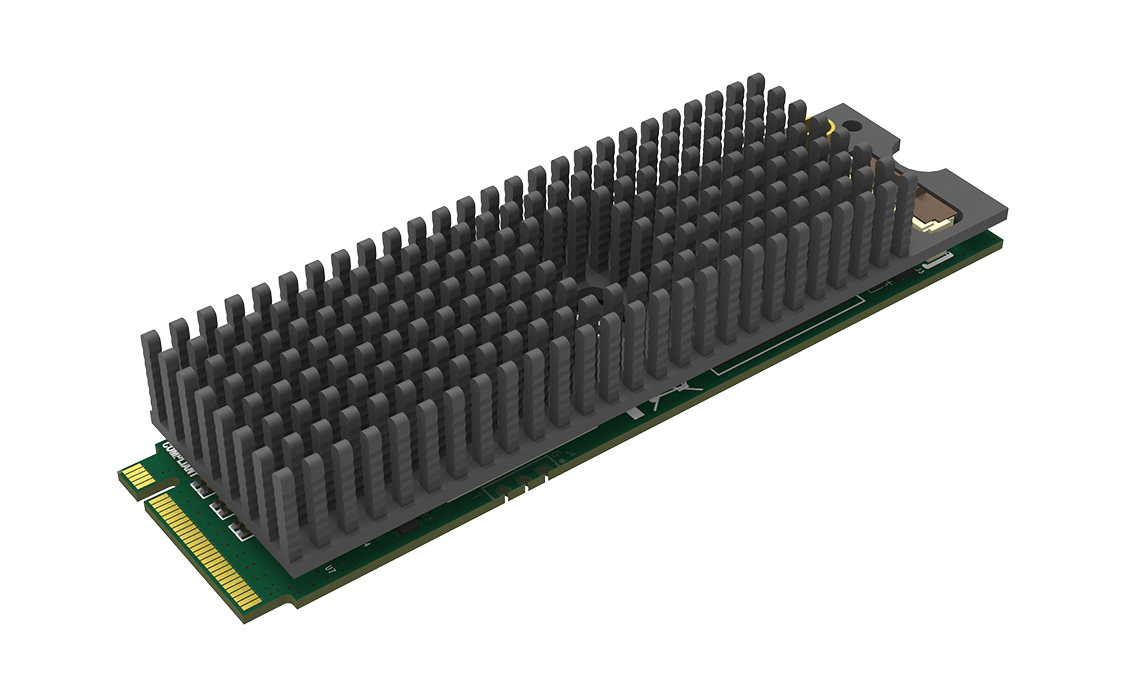

Magewell Eco Capture AIO M.2

Eco Capture AIO M.2
Magewell Eco Capture AIO M.2 - Image 2
Magewell Eco Capture AIO M.2 - Image 3

Magewell Eco Capture AIO M.2

£259.00 (ex VAT)

One-channel 2K capture card for all-in-one interfaces

SKU: 116000000

  • Support one-channel 2K HDMI/SDI input with embedded audio
  • M.2 2280 standard size for small or portable chassises

Quote Me

The Magewell Eco Capture AIO M.2 Card

Category:

Description

Magewell Eco Capture AIO M.2

The Magewell Eco Capture AIO M.2 Card supports one-channel 2K HDMI/SDI input with embedded audio.
Ideal for use in small and embedded systems where full-sized PCIe slots are not available. The cost-effective Eco Capture family offers systems integrators and OEM developers a robust capture solution with low power consumption for space-constrained applications. The low-latency Eco Capture devices feature a high-speed PCIe 2.0 bus interface with an M.2 connector and measure just 22x80mm (0.87×3.15in), matching the M.2 2280 size specification.



Eco Capture AIO M.2



Specifications and Features

Interface

Input Interface

  • HDMI x1, with input resolution up to 2048 x 1080 pixels
  • SD/HD/3G/2K SDI x1, with input resolution up to 2048 x 1080 pixels

Host Interface

  • M.2 2280 Type M (PCIe Gen2 x2)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams
  • Closed caption (SDK required)

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number

Specifications

Eco Capture AIO M.2 Specifications

document Download

Input Signal

  • HDMI 1.4a (via an accessory cable)
  • SD/HD/3G SDI (via an accessory cable)

HDMI Input Features

  • 165MHz HDMI receiver, max input: 2048×1080 60fps 4:4:4
  • Custom EDID
  • Input RGB/YCbCr 4:4:4 8/10/12-bit, YCbCr 4:2:2 8/10/12-bit
  • Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
  • HDMI interface: HDMI 1.4a

SDI Input Features

  • Max input: 2048×1080 60fps 4:2:2 10bit
  • Up to 8-channel 48KHz embedded audio
  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standard
  • Input RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 10/12-bit
  • Input SDI signals transmitted up to 110m for 3G-SDI signals
  • Support Closed Caption via SDK

CVBS Input Features

  • 12-bit ADC
  • Support NTSC, PAL and SECAM standard
  • Auto-detect input signal

Process and Capture Features

  • ~700MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~400MB/s per channel DMA bandwidth in PCIe 1.x system
  • Video processing pipelines with ~180Mpixels/s processing bandwidth
  • Capture videos up to 2048×1080, frame rates up to 144fps
  • HDMI outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
    • 2048x1080p60
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/75
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 720x576p25
    • 720x480p30
  • SDI outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
    • 2048x1080p60
    • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
    • 720x576p25
    • 720x480p30
  • Support for RGB/YCbCr 601/YCbCr 709/YCbCr 2020
  • Support video scaling, de-interlacing, color format conversion, frame rate conversion
  • Output videos at 8-bit 4:4:4
  • 100ns high-resolution clock based on hardware implementation
  • Hardware clock synchronization across cards via SDK

SDK & APIs

  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA

Output Interface

  • M.2 2280 Type M (PCIe Gen2 x2)
  • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above

Compatible Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

LED Indicator

  • Status LEDs indicate the working state of the device:
    • Pulsing slowly: no valid input signal
    • On: input signal locked
    • Off: no power
    • Double blinks: memory abnormal or FPGA misconfigured

Form Factor

  • M.2 Type–2280 (22 x 80 mm)

Accessories

  • 1 x FPC ribbon cables (Part number: 11514)
  • 1 x FPC to HDMI type A adapter (Part number: 11514)
  • 1 x MMCX to BNC cable

Power Consumption

  • Max current at 3.3V: ~ 0.89 A
  • Max power consumption: ~ 2.94 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% (non-condensing)

Accessories



FPCribboncables_1 Ribbon
2 x MMCX to SDI breakout

1 x FPC to HDMI type A adapter
Part number: 90092

1 x FPC ribbon cable (20 cm)
Part number: ACC00093
