Pro Convert Decoder Family (NDI® included)

Flexibly and Reliably Decode AV-over-IP and Internet Video Streams

Pro Convert decoders support both dedicated video-over-IP and universal streaming protocols including NDI®, SRT (Secure Reliable Transport), RTMP, RTSP, RTP, UDP, and HTTP, enabling high-quality conversion of full NDI, H.264 (AVC) or H.265 (HEVC) streams into high-quality HDMI or SDI outputs, making the transition from traditional video architectures to IP-based workflows more affordable and practical, the plug-and-play Pro Convert devices lets users bring HDMI or SDI sources into and out of live, IP media networks using NewTek's popular NDI technology..

Bridging Streams, Signals and Screens

Compatible with a wide variety of hardware and software encoders, The Magewell Pro Convert decoders transform input streams up to 4096x2160 at 60fps for output to baseband monitors, projectors, hardware switchers and more. They are perfect for multi-site video distribution, video walls, image magnification (IMAG), digital signage, remote production and video surveillance.

Magewell pro convert ndi to sdi

Simple Access to Advanced Features

Users can easily manage Pro Convert decoders through a browser-based Web GUI, while additional control options including on-device menu buttons and USB keyboard/mouse are available even before connecting the devices to a network.

[www.magewell.com][388]pro-convert-decoder-img-section-032x

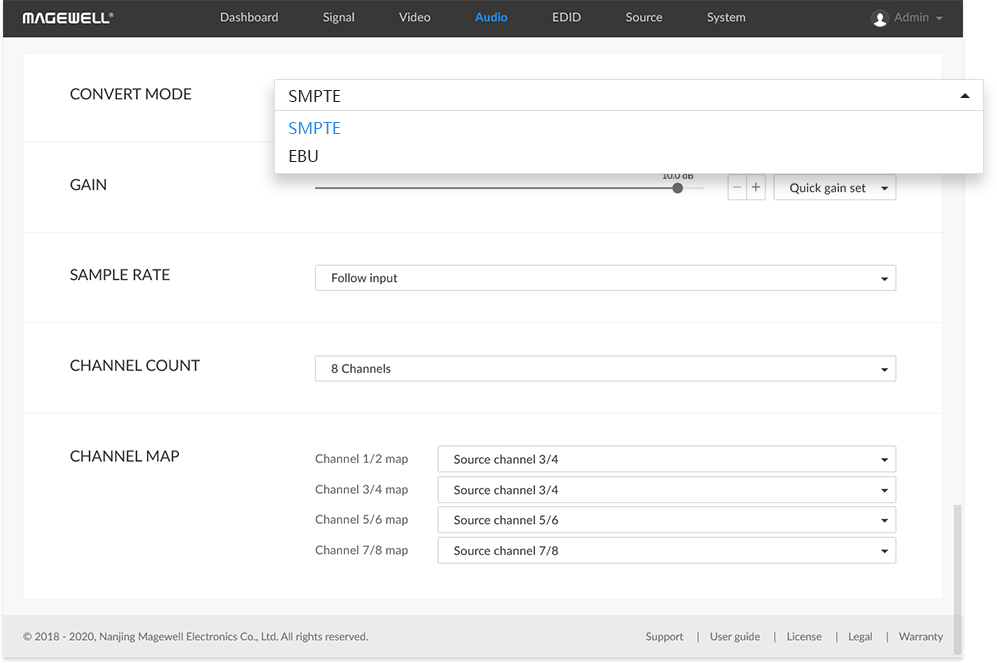

Integrated Output Optimization and Rich Audio

Pro Convert decoders offer built-in, high-quality video processing including up- and down-conversion to optimize the decoded output for the capabilities of the target display device. For audio, the decoders are compatible with multiple standards to meet the needs of users in different regions and support up to eight channels of embedded audio.

[www.magewell.com][265]pro-convert-decoder-img-section-04

Other Features

Power via Power over Ethernet (PoE) or USB power supply

Image flip for inverted projector installations

Safe area controls

Support for SRT Caller and Listen modes

Discover NDI devices across network segments

Remotely control PTZ cameras via NDI

Pro Convert Decoders (NDI Included)

Pro Convert IP to USB

Capture NDI, NDI|HX or other streaming sources through a USB interface, designed for conference rooms, production studios and environments where users’ software does not natively support IP protocols

Capture a network video source in software with resolutions up to 1080p60

Support for NDI® High Bandwidth, NDI® HX2 or NDI® HX3 sources or H.264/H.265 streams in protocols such as RTMP, RTSP, RTP, UDP, SRT and HTTP

Decoded as uncompressed YUY2/NV12 video up to 1080p60 or MJPEG video up to 1080p30

Decode of 2 audio channels with 16 bit, 48 kHz

DHCP support for automatic network configuration

Control of PTZ cameras via NDI® or Visca over UDP via the web UI

SKU：
623000000 (for US/EU/UK/AU/JP users);

QUOTE ME

Call for Price
MORE INFO
Magewell Pro Convert AES67

Pro Convert AES67

A multi-format IP audio converter and capture device

SKU:
642400000 (for US/EU/UK/AU/JP users);
642400001 KR

Quote Me

Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI^®, SRT and more

Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output

Enables mixed-technology local and remote production workflows and ProAV installations

Call for Price
MORE INFO
Pro Convert Audio DX

A multi-format IP audio converter and capture device (Dante^® enabled)

SKU:
642600000 (for US/EU/UK/AU/JP users);
642600001 KR

Offers a seamless bridge between analog audio, software and IP standards including Dante^®, NDI^®, SRT and more

Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output

Enables mixed-technology local and remote production workflows and ProAV installations

Quote Me

Call for Price
MORE INFO
Pro Convert H.26x to SDI

Magewell Pro Convert H.26x to SDI multi-protocol streaming media decoder transforms an H.264 (AVC) or H.265 (HEVC) compressed video stream into a high-quality SDI output for connection to baseband monitors, projectors and switchers

Converts an internet-delivered H.264/H.265 stream into a high-quality SDI output with extremely low latency

Connects baseband presentation or distribution equipment such as displays, projectors and routers into streaming workflows

Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP and HTTP

Plug-and-play ease of use with DHCP network configuration

Decodes streams up to 2048×1080 at 60 frames per second

SKU：
641700000 (for US/EU/UK/AU/JP users);

The device is supplied with different options of power adapters.

Quote Me

Call for Price
MORE INFO
Pro Convert for NDI to SDI

Magewell Pro Convert for NDI to SDI decodes Full NDI, NDI|HX, SRT, RTSP, RTMP, UDP, RTP and HLS up to 2048×1080 at 60fps for output via a 3Gbps SDI interface

Connects baseband presentation or distribution equipment into IP-based media networks

Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode

Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

SKU：
641500000 (for US/EU/UK/AU/JP users);
641500002 KR

QUOTE ME

Call for Price
MORE INFO
Pro Convert H.26x to HDMI 4K
Magewell Pro Convert H.26x to HDMI 4K decodes streams up to 4096×2160 at 60 frames for output over its HDMI 2.0 interface. Multi-protocol streaming media decoder transforms a standard H.264 (AVC) or H.265 (HEVC) compressed video stream and formats RTSP, HTTP. RTMP push/pull and TS over UDP/SRT/RTP into a high-quality HDMI output for connection to baseband monitors, projectors, switchers and legacy gear.

Pro Convert H.26x to HDMI convert multi-protocol IP-based stream including NDI into HD HDMI 4K signal.

Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

Supports decoding videos in H.264 and H.265 format

Automatically optimizes output based on EDID characteristics of connected display

Part number:
64140 US; 64142 EU; 64143 UK;
64144 AU; 64145 KR; 64146 JP

The device is supplied with different options of power adapters.

SKU:
641400000 (for US/EU/UK/AU/JP users);
Call for Price
MORE INFO
Pro Convert H.26x to HDMI

Magewell Pro Convert H.26x to HDMI decodes a standard H.264 (AVC) or H.265 (HEVC) compressed video stream into a high-quality HDMI output

Converts an internet-delivered H.264/H.265 stream into a high-quality HDMI output with extremely low latency

Connects baseband presentation or distribution equipment such as displays, projectors and routers into streaming workflows

Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP and HTTP

Plug-and-play ease of use with automatic output format optimization and DHCP network configuration

Decodes streams up to 2160×1200 at 60 frames per second

Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays

Part number:
64130 US; 64132 EU; 64133 UK;
64134 AU; 64135 KR; 64136 JP

SKU:
641300000 (for US/EU/UK/AU/JP users);

Quote Me

Call for Price
MORE INFO
Pro Convert for NDI to AIO

Magewell Pro Convert for NDI to AIO transforms live, IP-based NDI^® streams into high-quality SDI or HDMI outputs for connection to baseband devices such as monitors and projectors, simplifying the use of NDI in applications such as digital signage, video walls and image magnification.

Convert NDI^® stream to HD HDMI and/or 3G SDI signal

Support SD/HD/FHD standards.

Support YUV 4:2:2 colour sampling.

Support up to 48KHz 16bits 8-channel audio streams.

Support RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 colour sampling.

The device is supplied with different options of power adapters.

Part number:

642100000 (for US/EU/UK/AU/JP users);
642100002 KR

Quote Me

Call for Price
MORE INFO
Pro Convert for NDI to HDMI 4K

Magewell Pro Convert NDI to HDMI 4K is a NDI decoder which supports HDMI output and converts NDI and other multi-protocol IP-based stream into a 4K HDMI signal. Standalone – powered by USB or POE.

Convert multi-protocol IP-based stream into 4K HDMI signal

Convert NDI Signal to HDMI 4K Stream

Embedded Audio Supported

Up to DCI 4K NDI Input

Up to 4K60 HDMI Output

Part number:
64110 US; 64112 EU; 64113 UK;
64114 AU; 64115 KR; 64116 JP

The device is supplied with different options of power adapters.

SKU:
641100000 (for US/EU/UK/AU/JP users);

Quote Me

Call for Price
MORE INFO
Pro Convert for NDI to HDMI

Magewell Pro Convert NDI to HDMI is a Standalone NDI^® decoder which converts NDI stream to HD HDMI signal and supports up to 4096×2160 60fps HDMI output. Powered by POE or USB.

Support for decoding streams of NDI, RTSP, HTTP, RTMP Pull/Push, and TS over UDP/SRT/RTP in H.264 or H.265 format.

Support for decoding embedded audio.

Support for PoE (Power over Ethernet).

Support for plug-and-play.

Support for web-based UI remote control and on-device control buttons.

Magewell Part number:
64100 US; 64102 EU; 64103 UK;
64104 AU; 64105 KR; 64106 JP

The device is supplied with different options of power adapters.

SKU:
641000000 (for US/EU/UK/AU/JP users);
641000006 KR

QUOTE ME

Call for Price
MORE INFO
