USB Fusion

Make your online lectures and virtual events more engaging. Our USB Fusion hardware lets you combine camera and wired screenshare inputs into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.
Now supports wireless sharing input protocols including AirPlay®, Google Cast™ and Miracast™

Capture and Combine

USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.
USB Fusion offers two 1080p60 HDMI inputs plus one USB webcam input. It also supports wireless sharing input protocols including AirPlay®, Google Cast™ and Miracast™. Users can easily switch or combine sources via on-device buttons or the companion tablet app

Portable Design

Easy Setup and Flexible Features

As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software applications. Users or administrators can configure and manage the hardware through its built-in web GUI, while the free USB Fusion companion tablet app provides additional features to augment your presentations.

Engaging Presentations

Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.

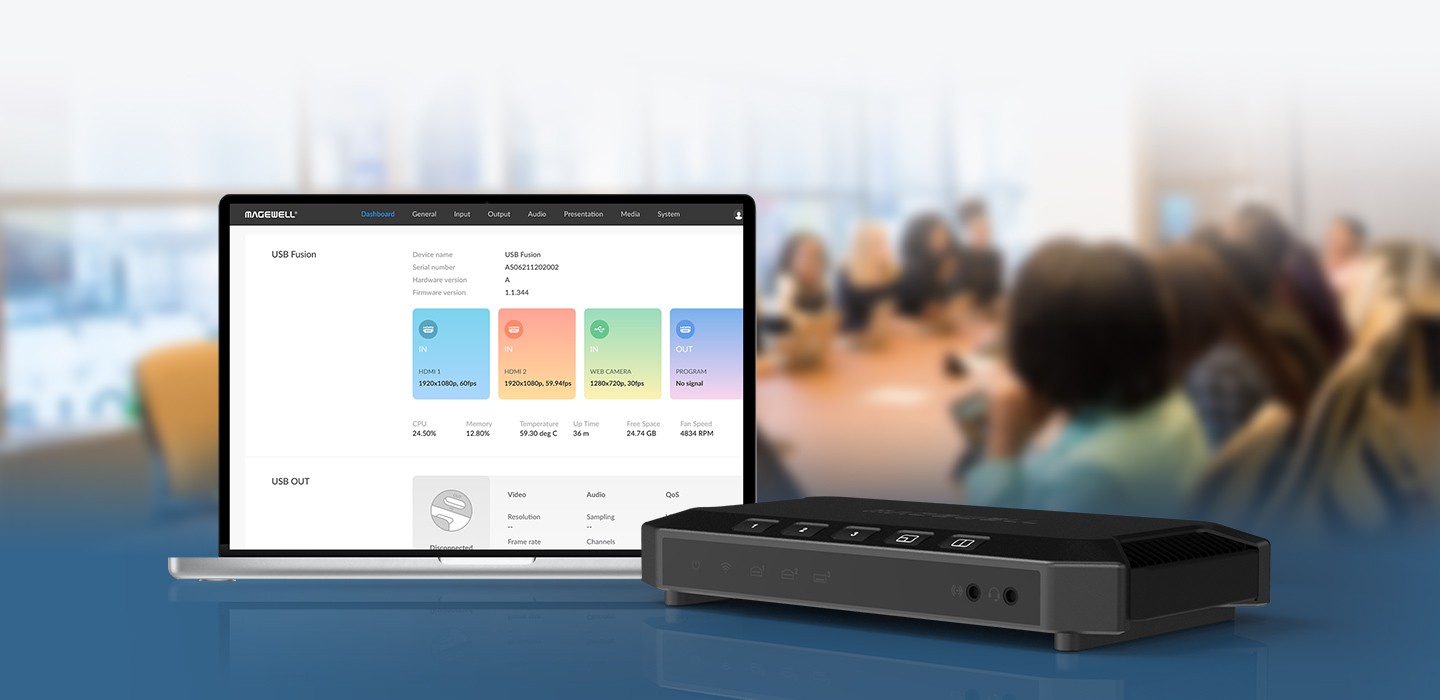

Configure Through Web GUI

Users or administrators can configure and manage the hardware through its built-in web GUI.

Product Info

Combines live video sources for a more engaging presentation

SKU: 350600000

  • Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps
  • Switches between sources or combines two simultaneously into one output
  • Companion tablet app for more advanced features

Specification and Features

Input FeaturesIncluded Software
Compatible SoftwareOthers

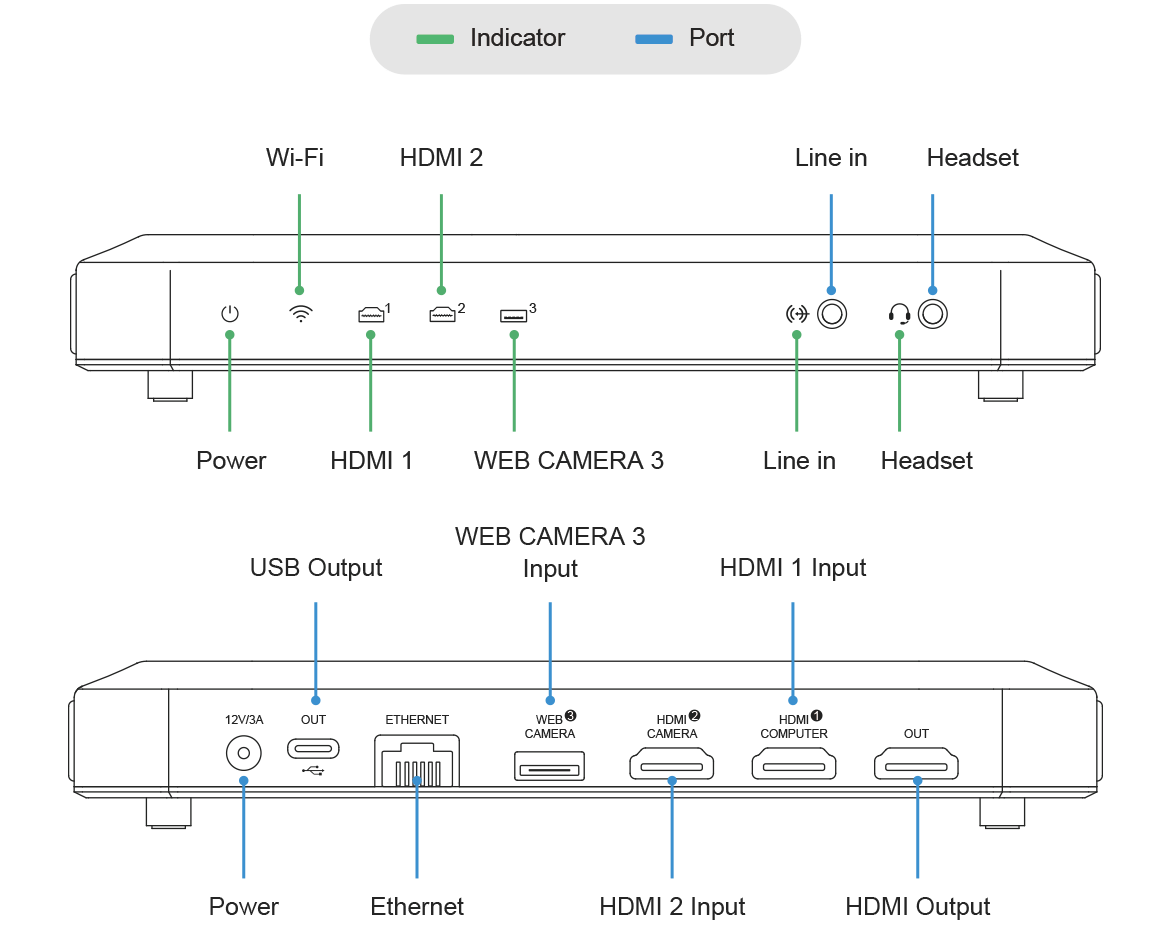

Input Interface&Output Interface
• 2x HDMI 1.4 Type-A input
• 1x USB 3.0 Type-A input
• Supports input resolution up to 1920x1080p, 60fps
• 1x USB 3.0 Type-C output
• 1x HDMI 1.4 Type-A output		• USB Fusion App

OS
• Skype, Zoom, Microsoft Teams, Capture Express, etc.		• Skype, Zoom, Microsoft Teams, Capture Express, etc.• Automatic, driver-free installation for plug-and-play
• On-device buttons and LED status indicator
• 2-year warranty
• Form factor: 186mm (L) x 101.2mm (W) x 30mm (H)

User Manual for USB Fusion Download
