Magewell USB Capture HDMI Plus ¦ One channel 2K(4K) Capture Device

Description

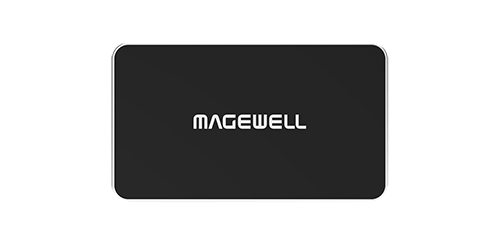

Magewell USB Capture HDMI Plus with a HDMI 1.4 interface. The device can capture signal from PS4, Xbox One, graphics cards, HD cameras (professional/sports/surveillance/video conference) and other devices. Max input resolution and frame rate is 4960 x2160p60 (4:2:0). It automatically down scale the video to 1080p60 for recording and streaming. Different audio input and output functions have also been added to the devices.

The Magewell USB Capture HDMI Plus (Magewell HDMI to USB capture) model captures video up to 1920×1200, 1920×1080 or 2048×1080 at 60 fps over an HDMI interface. The HDMI 4K to USB Plus also supports HDMI 4K to USB inputs at 60fps with 4:2:0 color subsampling, or at 30fps for 4:4:4, down-converting them automatically to HD for capture and recording.

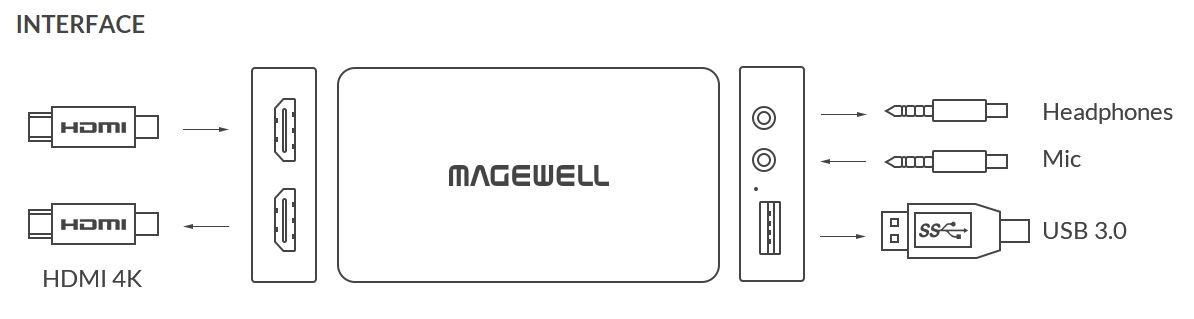

USB Capture HDMI Plus Connection’s

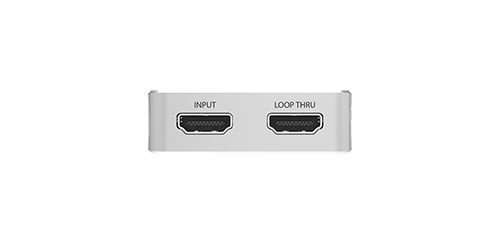

Compared to Magewell’s original USB dongles with just an HDMI or SDI input, the USB Capture HDMI Plus and SDI Plus have an input interface as well as a loop through one, which enables monitoring the image while streaming and/or recording. In addition, the new dongles have different audio input & output functions.

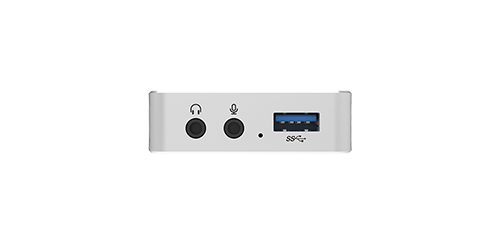

A 3.5mm audio interface allows for capture of analog audio from a separate audio device (not embedded in HDMI input). An analogue microphone input is available for live narration during capture. This eliminates the need for an additional audio capture device. The 3.5mm headphones interface allows for playback of audio (either extracted from the embedded HDMI audio or from the analog audio input). Magewell HDMI to USB capture.

Interface	Video Engine	Signal Detection & Support	Software Environment
Input Interface • HDMI x1 • Support input resolution up to 4096×2160 pixels Loop-through Interface • HDMI x1 • Support loop-through resolution up to 4096×2160 pixels Audio Input Interface • 3.5 mm audio jack for microphone Audio Output Interface • 3.5 mm audio jack for headphones Host Interface • USB 3.0	8-bit video processing Deinterlace Cropping Color Adjustment Color Space Conversion Up/down Conversion Aspect Ratio Conversion Mirror and Flip	Auto Detection of Input Signal Format 3D HDMI	OS • Windows, Linux, Mac, Chrome OS Driver and Firmware • Driver Free, Updatable Firmware Included Software • USB Capture Utility, Capture Express Compatible Software 50+

USB Capture Downloads
USB Capture FaQs
Compatible Software

USB Capture Utility V3

USB Capture Utility V3

Utility V3 is a free software for USB Capture and USB Capture Plus devices. Users can easily check and set the capture-related parameters, upgrade the firmware by themselves and export info needed for technical support with the help of the Utility.

Download the Utility for USB Capture Family and for USB Capture Plus Family.

Features Include;

• Capture Format Setting

• Audio Volumn Control

• Mirror and Flip

• EDID Editing and Importing

• Firmware Update

• Export Diagnose Report

For full description, visit the full page; USB Capture Utility V3 Utility V3 also provide functions such as cropping, deinterlacing, device name setting, aspect ratio conversion, timing adjustment, status image setting, etc. For detailed introduction of the settings and functions, please check the Utility V3 User Manual.

Specifications

Supported OS	Windows • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) Linux (support x86, x64 & ARM architecture) • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64) • CentOS 6.5/7 (x86 & x64) • Fedora 25/26/27 (x86 & x64) • Red hat 6.5 and above (x86 & x64) • Other Linux OS with kernel version 2.6.35 and above Mac • OS X 10.9/10.10/10.11 • macOS 10.12/10.13 Chrome OS
Recommended OS (tested)	Windows • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux • Ubuntu 12.04/14.04/16.04 (x86 & x64) • Ubuntu 17.04/17.10 (x64) • CentOS 6.5/7.2 (x86 & x64) • Fedora 25/26 (x64) • Red hat 6.5 (x86 & x64) Mac • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 • macOS 10.12/10.13.2/10.13.3
Supported APIs	Windows • DirectShow • Wave API/DirectSound/WASAPI Linux • V4L2 • ALSA OS X/macOS • QuickTime • AV Foundation
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software
Input Interfaces	HDMI • DVI-D 1.0 • HDMI 1.4 3.5mm audio jack • Microphone interface
Output Interface	3.5mm audio jack • headphones interface
Loop-through Interface	HDMI • DVI-D 1.0 • HDMI 1.4
Input features	Support for input video resolutions up to 4096x2160
HDMI Specific Features	297MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals For 4:2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing For 4:4:4/4:2:2 input signal at more than 170MHz, the horizontal resolution will be reduced to 1/2 for capturing Support for 2 channel ISC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Analog Audio Features	Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out Capture of analog audio via 3.5 mm microphone interface Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.
Video Capture format	Support for capture resolutions up to 2048x2160 Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.) • 1920x1080 YUY2 (up to 70fps) • 1920x1080 RGB24 (up to 60fps Support for YUY2 & UYVY 4:2:2 8-bit Support for RGB24 & RGB32 4:4:4 8-bit The default capture format is YUY2. More capture formats can be set using USB Capture Utility.
Video Processing Features	Video processing pipelines with 160 Mpixels/s processing bandwidth Video cropping Video scaling Video de-interlacing • Weave • Blend top & bottom field • Top field only • Bottom field only Video aspect ratio conversion • Auto or manual selection of input aspect ratio • Auto or manual selection of capture aspect ratio • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion • Auto or manual selection of input color format & quantization range • Auto or manual selection of capture color format, quantization range & saturation range • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats • Support for Limited or Full quantization range • Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Vertical flip and mirror
Multiple devices on one computer	Support for connecting multiple USB devices to one system Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK	The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Form Factor	98mm (L) x 98mm (W) x 25mm (H)
Accessories	USB 3.0 cable
Power Consumption	5V max current: 900mA Max power consumption：~ 4.5 W
Working Environment	5V max current: 900mA Max power consumption：~ 4.5 W
