Description

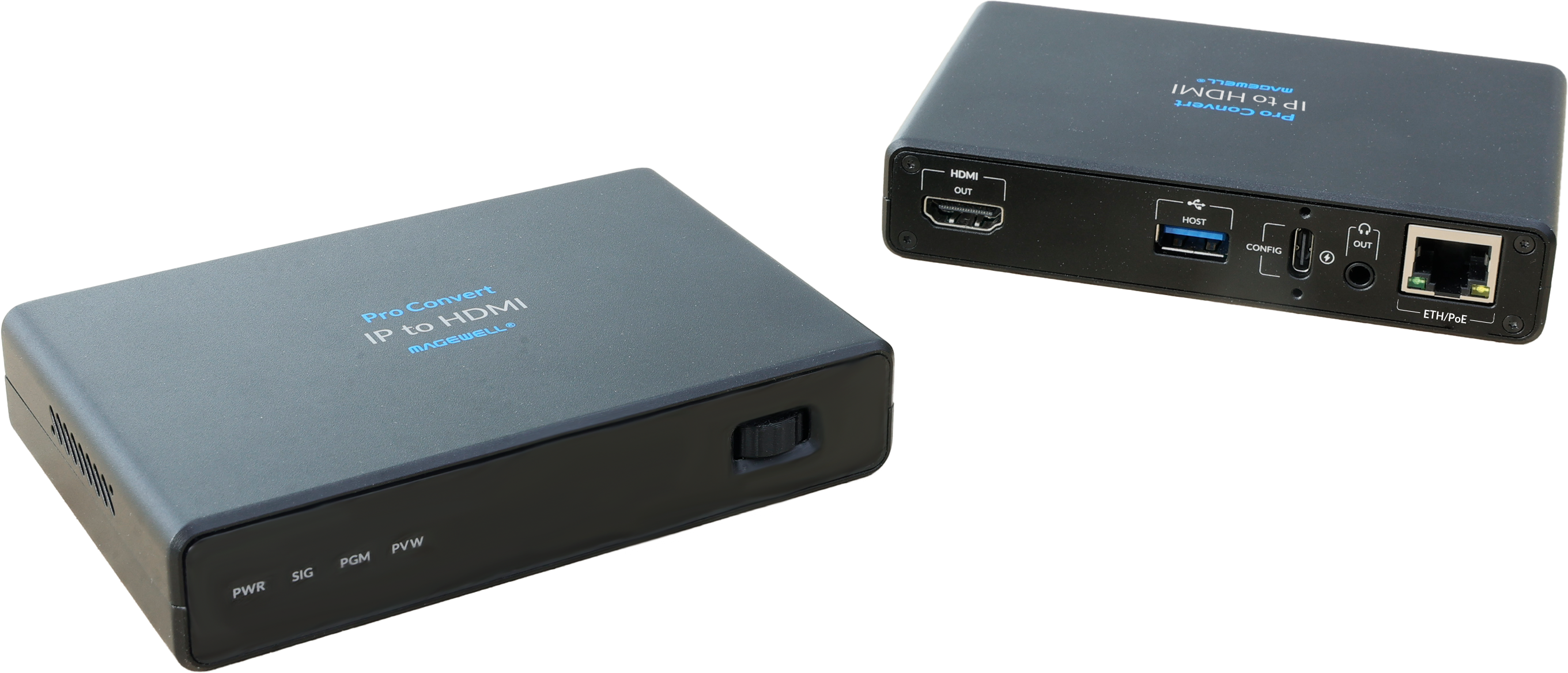

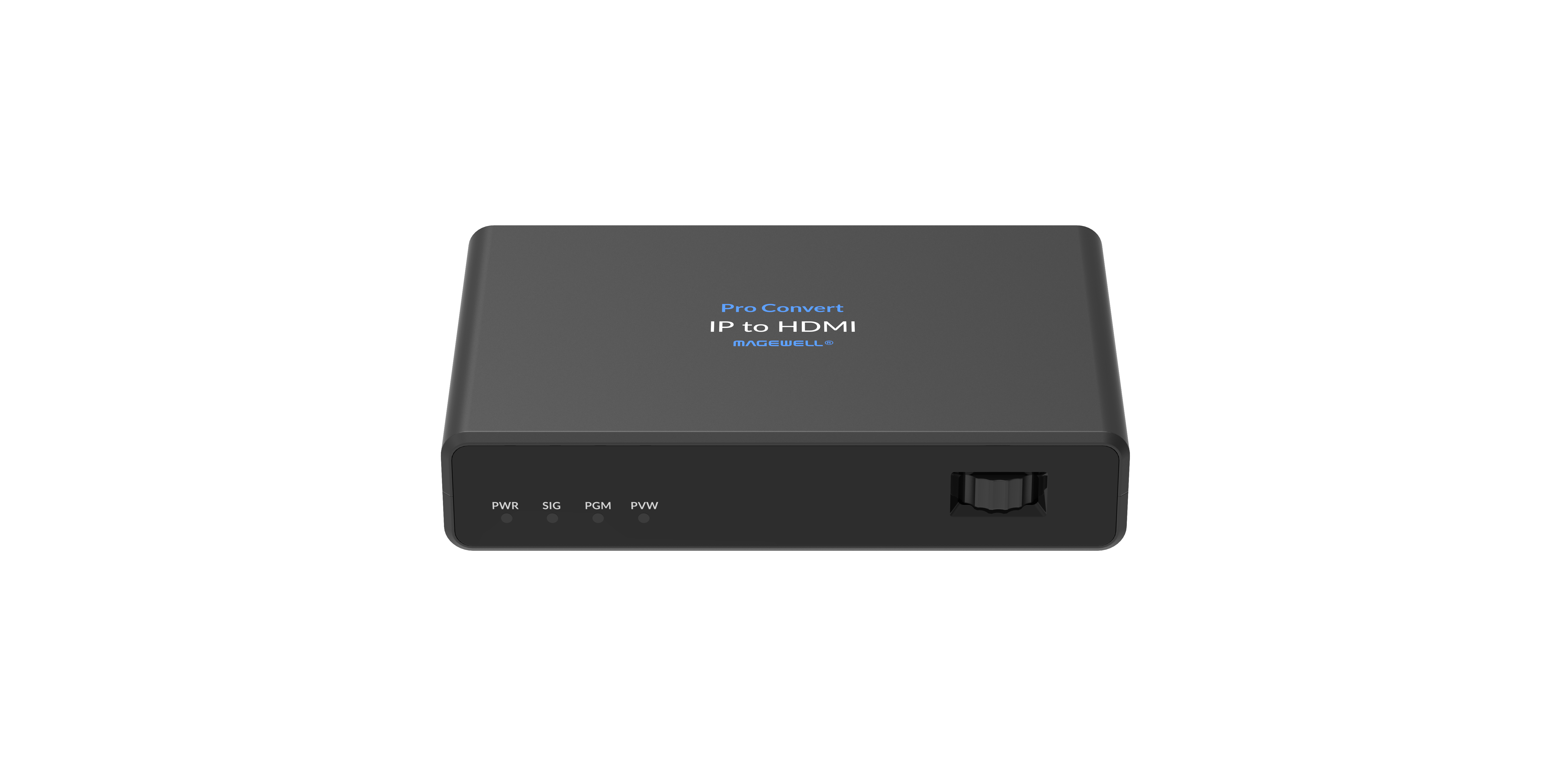

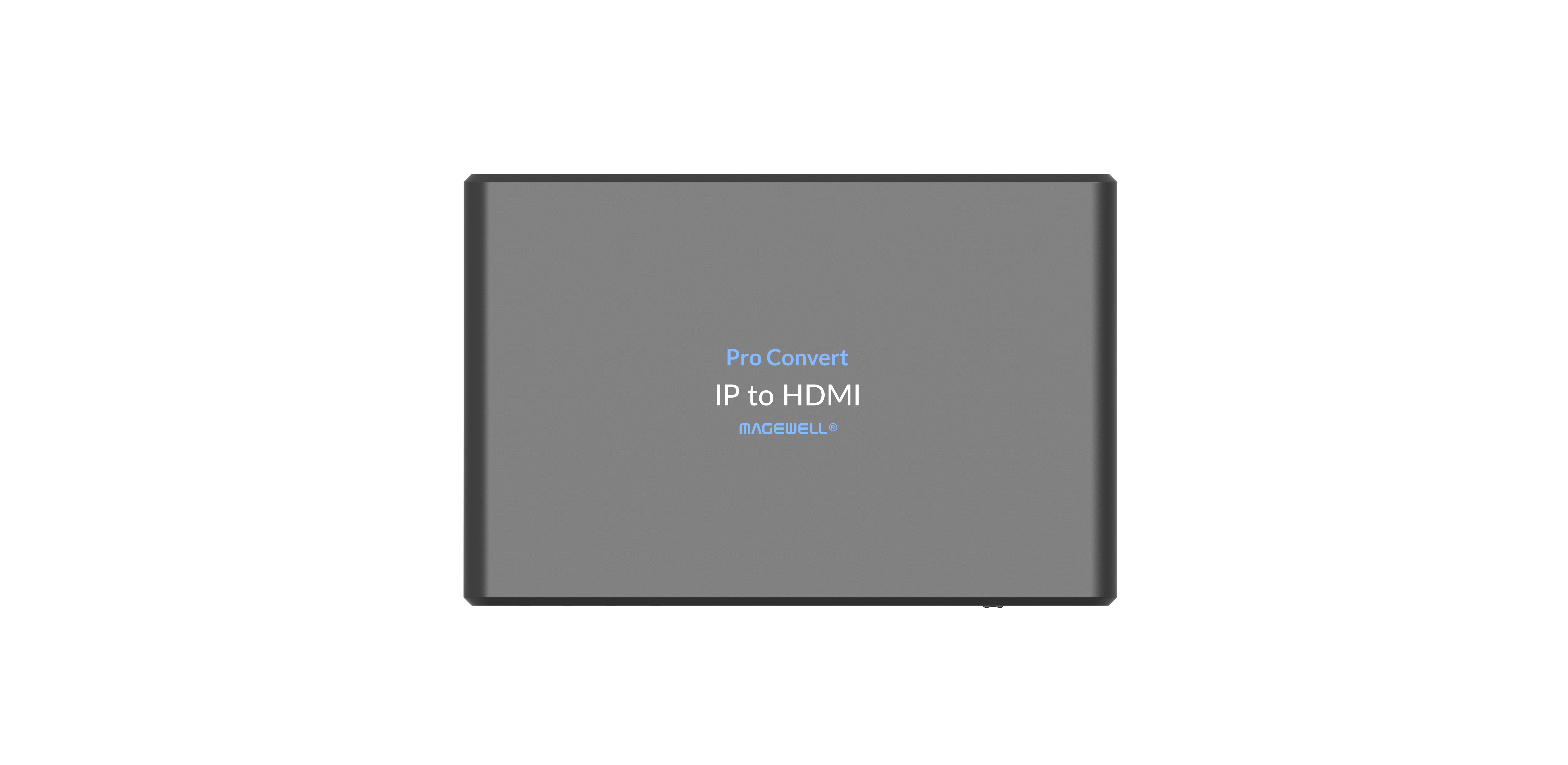

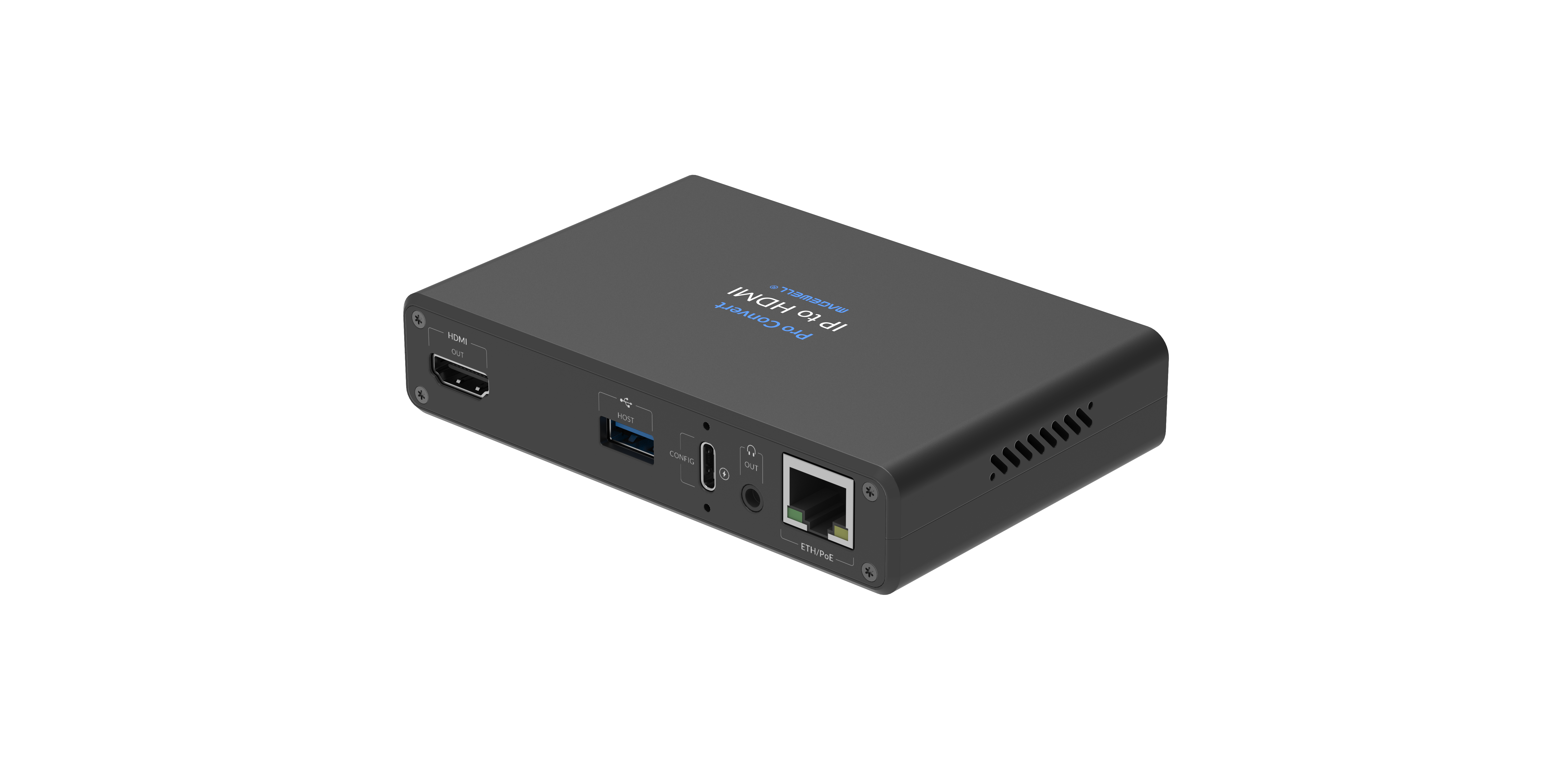

Magewell Pro Convert IP to HDMI Decoders
Pro Convert IP to HDMI is a standalone decoder that converts up to four IP streams into a single HDR 10-compatible, QHD (2560×1440) HDMI output. It is compatible with NDI® High bandwidth, NDI® HX 2, NDI® HX3 and other popular streaming protocols. Featuring a built-in Multiviewer, the decoded streams can be output in single/dual/quad layouts and previewed either in real-time stream or MJPEG thumbnails. Along with other tools that simplify setup, monitoring, and troubleshooting, the device is ideal for diverse applications including security/surveillance, command and control, and broadcast.
The Magewell Pro Convert IP to HDMI isn’t just a decoder — it’s a display controller. Its built‑in layout modes let you turn multiple IP streams into a clean, professional HDMI output without needing a switcher, PC, or extra hardware. That flexibility is a huge advantage in AV, security, broadcast, and control‑room environments.
• Single‑Stream: One full‑screen feed, maximum quality.
• Dual View: Two streams side‑by‑side.
• Picture‑in‑Picture (PiP): One main feed with a smaller window overlaid.
• Quad View: Four streams in a 2×2 grid.
Decoding Features
- Support decoding 1 stream of up to 2560x1440p60 in H.264/H.265, SpeedHQ, and MPEG2 format
- Support NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, TS over RTP/UDP, RTMP, RTSP, HLS, ZIXI protocols
- Support multiview layouts
– For quad-screen, support decoding 4 streams of H.264/H.265 at up to 1920x1080p60 simultaneously
– For picture-in-picture, support decoding 2 streams of up to 1920x1080p60 simultaneously, with a maximum of 1 stream in H.264/H.265, SpeedHQ, or MPEG2 format - Support decoding audio in AAC, MP3, AC3, Opus, and G.711 formats
- Support NDI 6.x
Output Features
- Max output: 2560×1440 60fps 4:4:4 10-bit
- Delivering video at the preferred video format according to the capabilities of the connected monitor
- Support 48/96KHz 8-channel audio output
- Support HDR10
Others
- Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
- Register with Control Hub for remote centralized management
- Support preview of output images and PTZ control
- Provide HTTP APIs
- LED status indicators
- Form factor: 4.72 in (L) x 3.12 in (W) x 0.96 in (H) (120 mm x 79.3 mm x 24.5 mm)
Core Uses
• Corporate AV – Show remote presenters, meeting rooms, or IP cameras on boardroom screens.
• Broadcast & Live Production – Decode NDI/SRT feeds for switchers, monitors, or multiview setups.
• Security & Surveillance – Display multiple IP camera feeds on a single HDMI monitor.
• Control Rooms – Monitor several live streams (traffic, utilities, emergency ops) on one display.
• Education – Bring remote lectures or NDI/SRT classroom feeds to projectors and screens.
• Digital Signage – Convert cloud‑delivered or network‑delivered content into HDMI for signage.
• Engineering & Monitoring – Test, preview, and troubleshoot IP streams using the built‑in multiviewer.
Why It’s Useful
• Decodes up to four streams at once
• Supports NDI, NDI HX, NDI HX3, SRT, and all major IP formats
• Outputs to HDMI up to 2560×1440
• Offers single, PiP, or quad‑view layouts
• Works standalone — no PC required
