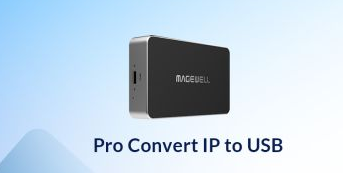

Magewell Pro Convert IP to USB
The Pro Convert IP to USB is a plug-and-play device that allows computers — including laptops — to capture NDI, NDI|HX or other streaming sources through a USB interface, with no external power required. It is designed for conference rooms, production studios and environments where users’ software does not natively support IP protocols or where installing additional software is not permitted.
Magewell Pro Convert IP to USB: Bridging Network Streaming and USB Simplicity
In the evolving world of AV-over-IP and networked video workflows, devices that simplify integration without sacrificing quality or versatility are invaluable. The Magewell IP to USB converter is one such product — a compact, hardware-based solution that effortlessly converts IP based streaming video into a standard USB video class (UVC) device signal. This allows virtually any software on Windows, macOS, Linux, to treat a network video stream as if it were a plug-and play webcam or capture device
Main features
- Capture a network video source in software with resolutions up to 1080p60
- Support for NDI® High Bandwidth, NDI® HX2 or NDI® HX3 sources or H.264/H.265 streams in protocols such as RTMP, RTSP, RTP, UDP, SRT and HTTP
- Recording as uncompressed YUY2/NV12 video up to 1080p60 or MJPEG video up to 1080p30
- Recording of 2 audio channels with 16 bit, 48 kHz
- DHCP support for automatic network configuration
- Control of PTZ cameras via NDI® or Visca over UDP via the web UI
Supported Streaming Protocols
The Magewell IP to USB device decodes and supports a broad range of popular network streaming protocols, including:
• RTSP (Real Time Streaming Protocol)
• RTMP / RTMPS (Real Time Messaging Protocol / Secure)
• SRT (Secure Reliable Transport)
• NDI® High Bandwidth
• UDP
• RTP (Real-time Transport Protocol)
• HTTP (Progressive Streaming)
• NDI® | HX2 / NDI® | HX3 (depending on firmware version)
This ensures compatibility with a wide variety of professional cameras, encoders, streaming servers, and software.
Applications and Use Cases
The versatility of IP-based video combined with USB simplicity makes Magewell IP to USB suitable for a wide range of applications:
📹 Video Conferencing
Integrate professional PTZ or broadcast IP cameras into Zoom, Microsoft Teams, Google Meet, or Webex calls without special drivers.
🎓 Distance Learning / Lecture Capture
Decode network streams from classroom cameras and deliver them to video capture and recording software like Panopto, Kaltura, or OBS.
🎥 Live Production
Add IP-based sources into content creation or streaming platforms such as vMix, Wirecast, or OBS Studio as UVC inputs.
🏢 Corporate / AV Installations
Display or record networked camera feeds in boardrooms, control rooms, or digital signage systems.
� Security & Monitoring
Convert RTSP streams from IP surveillance cameras into USB webcam inputs for security monitoring software.
Is There a Comparable Product?
There are very few direct hardware equivalents to the Magewell IP to USB on the market. Most IP decoding solutions output via HDMI or SDI and require additional USB capture hardware.
Conclusion: Magewell IP to USB remains uniquely positioned in its category for converting network video streams directly to USB UVC — with the added flexibility of multiple streaming protocols, compact hardware, and zero-driver integration
Scope of delivery
- 1x Magewell Pro Convert IP to USB
- 1x USB Type-C Type-A Cable
- 1x USB Type-C Type-C Cable
