Description

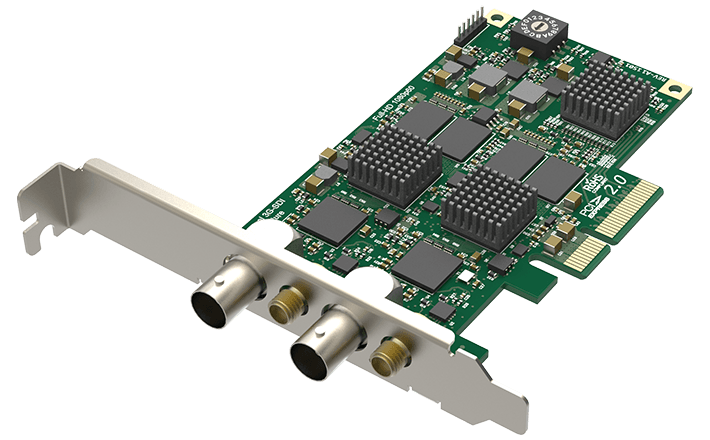

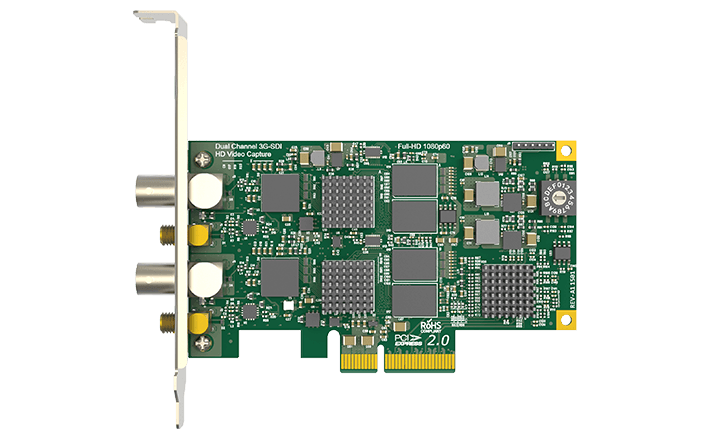

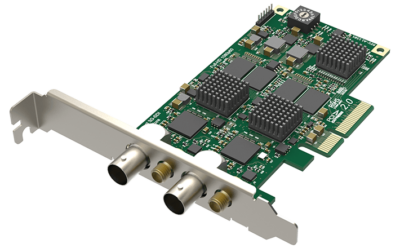

The Magewell Pro Capture Dual SDI Card is a low-profile PCIe Gen2 x4 card that allows for capturing 2 channels of SDI input. The card supports multiple color sampling modes, 10- and 12-bit color depths, up to 8 audio channels at 48 kHz, and output resolutions up to 2048×2048 with frame rates up to 120 fps. The card is also capable of numerous video processing features, including cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.
Magewell Pro Capture Dual SDI Card supports multiple cards per system and unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. The card supports both Windows, Linux, and Mac operating systems, multiple APIs for Windows and Linux, and provides Windows SDKs for easier integration.
The Magewell Pro Capture Dual SDI supports Windows, Mac and Linux operating systems. Compatible with all popular encoding, streaming, live production, web conferencing, lecture capture, medical imaging and VR creation software. A comprehensive SDK lets third-party developers directly leverage the full; advanced feature set of Magewell cards in custom software applications and turnkey solutions.
Audio / video |
|
| Video resolutions | Up to 1080p60, automatic format detection |
| Audio | 8 channels each |
| latency | Approx. 64 image lines |
| Conversion and editing | De-interlacing, scaling and color adjustment Adjustment of frame rate, color space or aspect ratio |
Multiple Streaming
One video source can be sent as multiple streams to different software applications. The resolution, frame rate, deinterlacing mode, color adjustment; etc of each stream can be different. For example, users can live broadcast, record and preview a skiing contest simultaneously using Flash Media Live Encoder, Capture Express and Windows Media Encoder.
| Interface | Video Engine | Signal Detection & Support | Software Environment |
|---|---|---|---|

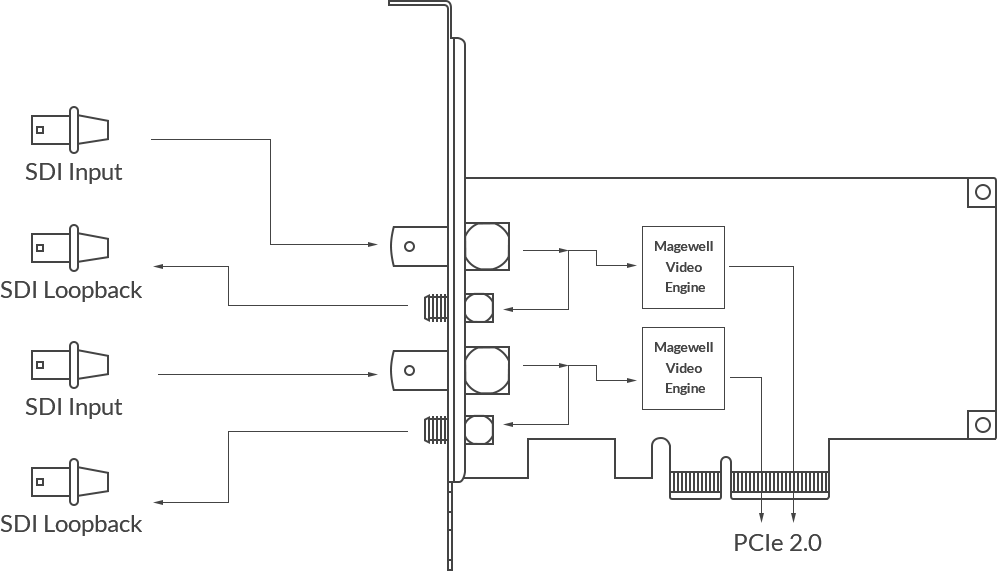

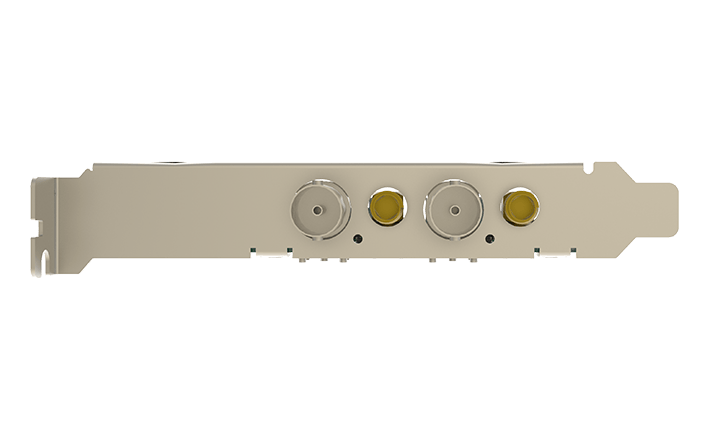

| Input Interface • SD/HD/3G/2K SDI x2 • Support input resolution up to 2048×1080 pixels Loop-through Interface • SD/HD/3G/2K SDI x2 • Support loop-through resolution up to 2048×1080 pixels Host Interface • PCIe Gen2 x4 | 10-bit video processing Deinterlace Cropping Color Adjustment Hardware Timestamp Color Space Conversion Up/down Conversion Aspect Ratio Conversion OSD SG-DMA Transmission mode | Auto Detection of Input Signal Format Time Code Closed Caption | OS • Windows, Linux, Mac Driver and Firmware • Universal Driver, Updatable Firmware Included Software • Pro Capture Utility, Capture Express Compatible Software 50+ |
