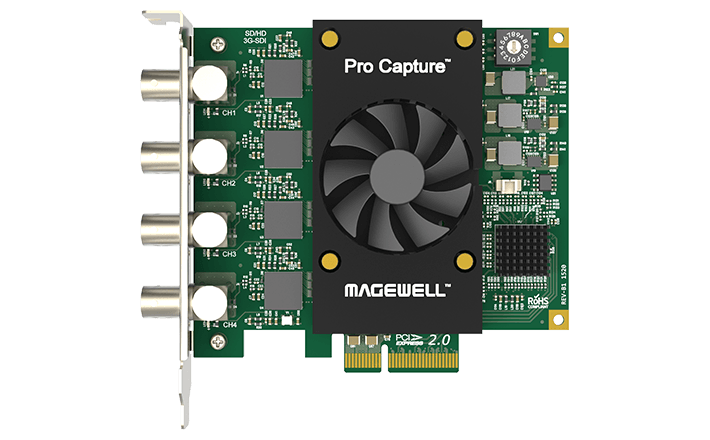

Magewell Pro Capture Quad SDI

Magewell PN: 11090

Four-channel SDI Capture Card

  • Captures SD/HD/3G-SDI x 4
  • Maximum Resolution: 3840 x 2160
  • Supported: PC | Linux | Mac
  • Host Interface: PCI Express 2.0 x4

Quote Me

The Magewell Pro Capture Quad SDI is an ideal solution for applications that require a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing. Four SDI input video capture card.

Description

The Magewell Pro Capture Quad SDI is an ideal solution for applications that require a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing. Four SDI input video capture card.

Magewell Pro Captue Quad SDI capture card acquires streaming video from other devices that support SDI format such as SDI cameras. A single Magewell capture card can capture video from 1,2, and 4 video streams simultaneously.

One video source can be delivered as any number of normal streams or two real-time streams to different software for processing. The resolution, frame rate, de-interlacing mode, image control, etc of each stream can be different. Each stream can reach the set frame rate with no frame drops. For example, users can live broadcast, record and preview a skiing contest simultaneously using Flash Media Live Encoder, Capture Express and Windows Media Encoder. This function causes 0 CPU usage.

Multiple cards can be installed on the same host and work at the same time. Mark the card by setting the number on the rotary switch.
There are hexadecimal numbers on the rotary switch. Users can set the number on the rotary switch on each card. The number will appear together with the name of the cards in device manager and video capture software. When multiple same cards are mounted, the user can locate a certain card quickly by the number.

Magewell capture cards also support super-low processing and transmission latency down to 64 video lines. For example, the capture latency of 1080p 60Hz and YUY2 can be lower than 1 ms. Low-latency mode doesn’t require SDK integration. To further reduce the total latency, users can integrate Magewell SDK to enable partial notification function.

Magewell Pro Capture Quad SDI

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface
• SD/HD/3G/2K SDI x4
• Support input resolution up to 2048×1080 pixels

Loop-through Interface
• SD/HD/3G/2K SDI x2
• Support loop-through resolution up to 2048×1080 pixels

Host Interface
• PCIe Gen2 x4
10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode
Auto Detection of Input Signal Format

Time Code

Closed Caption
OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
50+

Specifications

Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Mac
• OS X 10.9/10.10/10.11
• macOS 10.12/10.13
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Mac
• OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
• macOS 10.12/10.13.2/10.13.3
Supported APIsWindows
• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareVLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

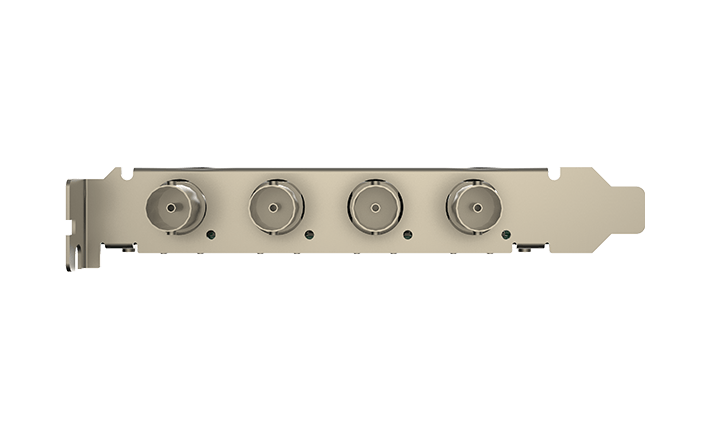

Input Interfaces4x BNC
• SD/HD/3G SDI
Host InterfacePCIe Gen2 x4
Input featuresSupport for input video resolutions up to 2048x1080 pixels
SDI Specific FeaturesIntegrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec)
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
• YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
• YCbCr 4:4:4 10-bit: captured as 4:2:2
• RGB 4:4:4: R/B sub-sampled
Support for Closed Caption
Video Capture FormatsSupport for capture image resolutions up to 2048x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. )
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing FeaturesTwo video processing pipelines with ~180Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
• Support for PNG OSD image (up to 2048x2160)
• Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per SystemSupport for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture Quad SDI” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture StreamsUnlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency SupportLatency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA~400MB/s per channel DMA bandwidth in PCIe 2.0 system
~200MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDKMagewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver TweaksAll options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
• On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed
Form FactorNormal profile PCIe x4 Add-on Card
112.15mm x 102.92mm (without PCI bracket)
Power ConsumptionMax current at 12V: ~ 0.77 A
Max current at 3.3V: ~ 2.52 A
Max power consumption: ~ 17.1 W
Working EnvironmentOperating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
